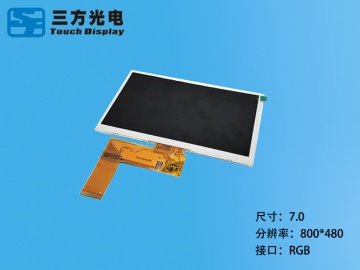

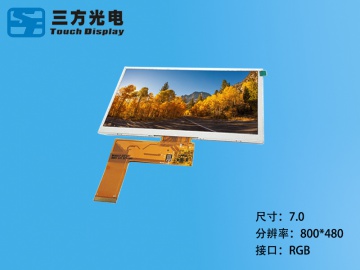

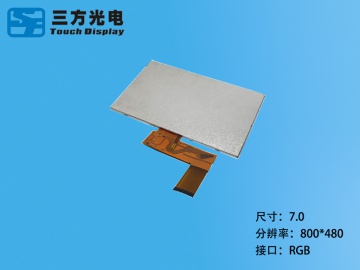

1.LCM General Information
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
7.0’’TFT |
-- |
|
Dot arrangement |
800(RGB)×480 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
TN/ Transmission/ Normally White |
- |
|
Optimum viewing direction |
6 o’clck |
-- |
|
Module size |
165.0(W)×100(H)×5.4(T)(Exclude FPC) |
mm |
|
Active area |
153.84(W)×85.63(H) |
mm |
|
Interface |
RGB |
-- |
|
Operating temperature |
-20~ +70 |
°C |
|
Storage temperature |
-30~ +80 |
°C |
|
Back Light |
White LED6*5 |
-- |
2. LED Backlight Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
17.4 |
18.6 |
21 |
V |
If=150mA |
|
Supply Current |
If |
- |
150 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
600 |
600 |
- |
cd/m2 |
If=150mA |
|
Uniformity for LCM |
- |
- |
80 |
- |
％ |
If=150mA |
|
Life Time |
- |
- |
50000 |
- |
Hr |
If=150mA |
|
Backlight Color |
White
|
|||||

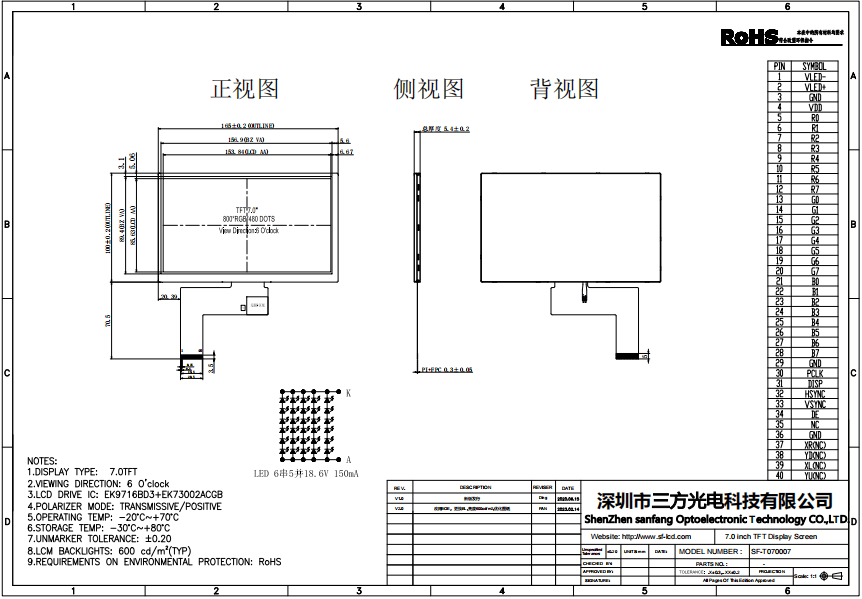

3.Outline Dimensions
