产品参数:
型号： S070SWV95HG-DR04尺寸：7.0 寸
分辨率：800*480
色彩：16.7M
点距：0.192*0.1805
视角：12点方向
色彩：16.7M

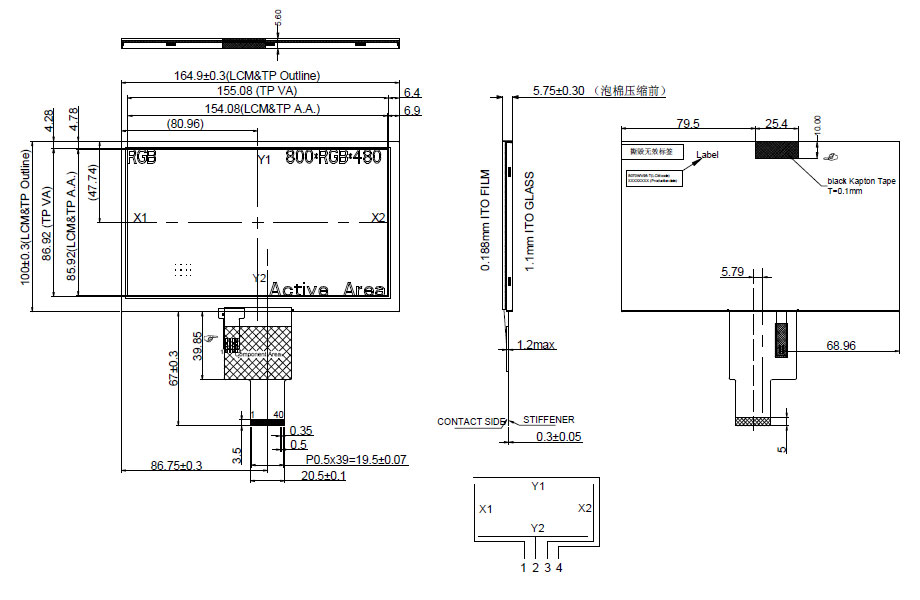

外观尺寸（LCM）：164.9(W) *100.0(H)*5.75(D)(mm)
显示（AA）尺寸：154.08(W)*85.92(H) (mm)
工作温度：-20°C～+60°C
存储温度：-30°C～+70°C
背光亮度：400 cd/㎡
对比度：500
响应时间：25ms
可视角度：55
PIN数：40PIN
接口方式：RGB 24-bit
玻璃厂家：深超
驱动IC:HX8294-E,HX8664-B
匹配触摸：电容触摸屏、电阻触摸屏

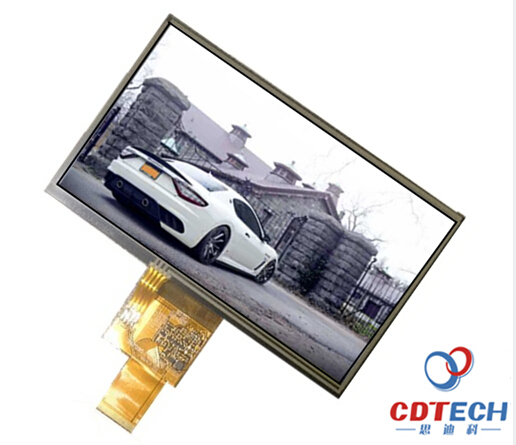

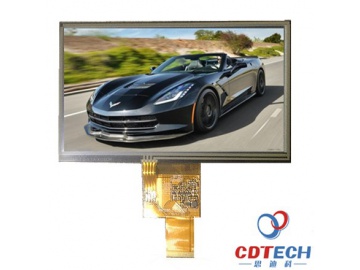

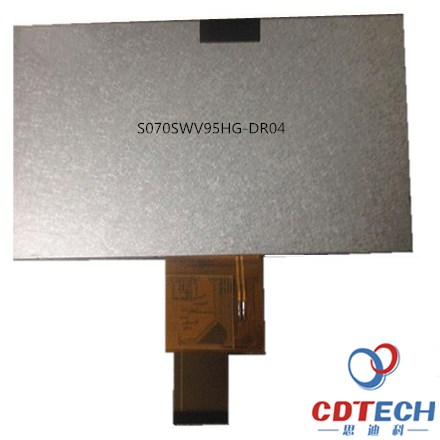

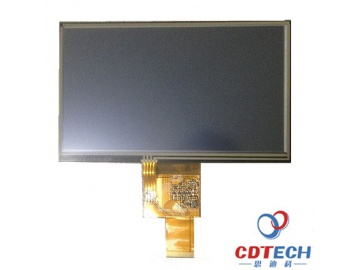

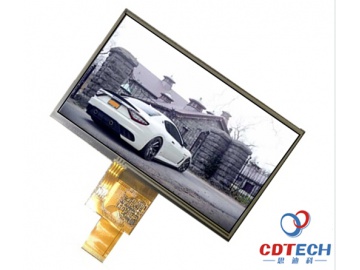

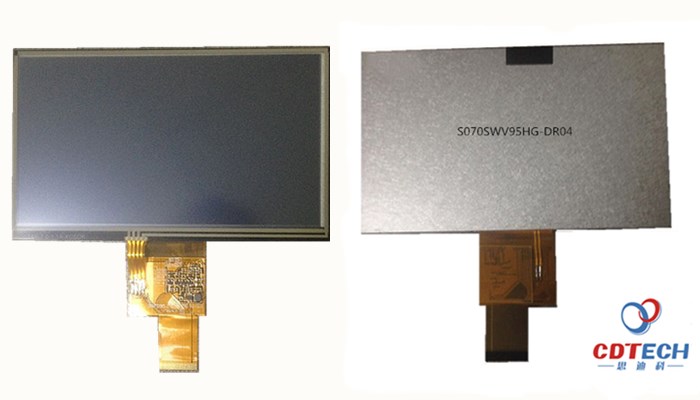

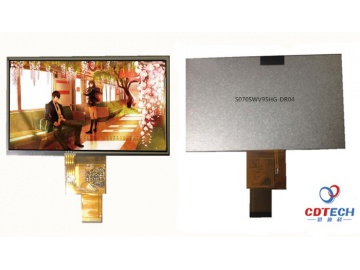

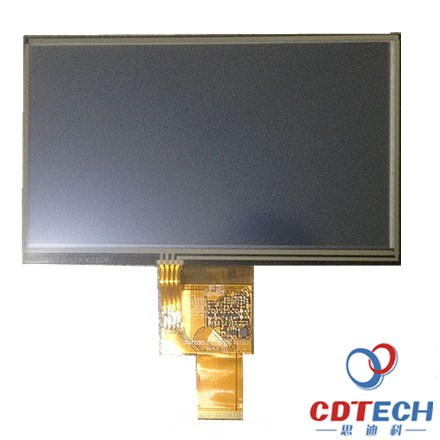

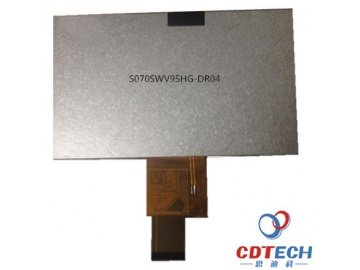

产品图片：
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q: 2. What is the lead time for sample?
A: Current sample needs 1-3 days, customized sample needs 15-20 days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ is 1PC.
Q: 4.How long is the warranty?
A:12 Months.
Q: 5. what express do you often use to send the samples?
A: We usually ship samples by DHL, UPS, FedEx or SF. It usually takes 3-5 days to arrive.
Q: 6. What's your acceptable payment term?
A: Our usually payment term is T/T. Others can be negotiated.
Q: 7. How to proceed the order if I have logo to print?
A: Firstly, we will prepare artwork for visual confirmation, and next we will produce a real sample for your second confirmation. if sample is ok, finally we will go to mass production.
