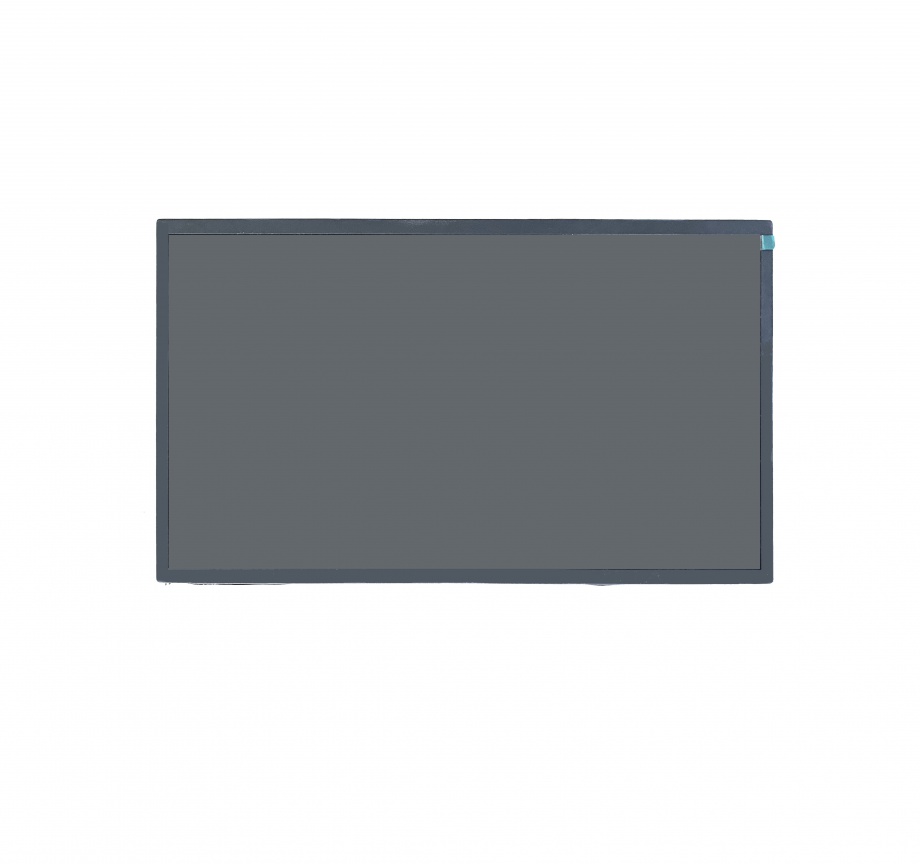

| Item | 18.5 inch 1366*768 TFT LCD module |
| Model No | PV185001TX30B |
| Resolution | 1366*768 |

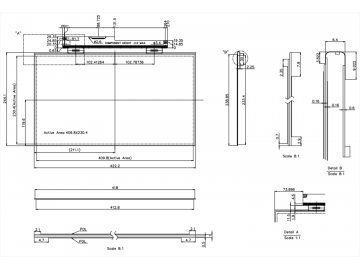

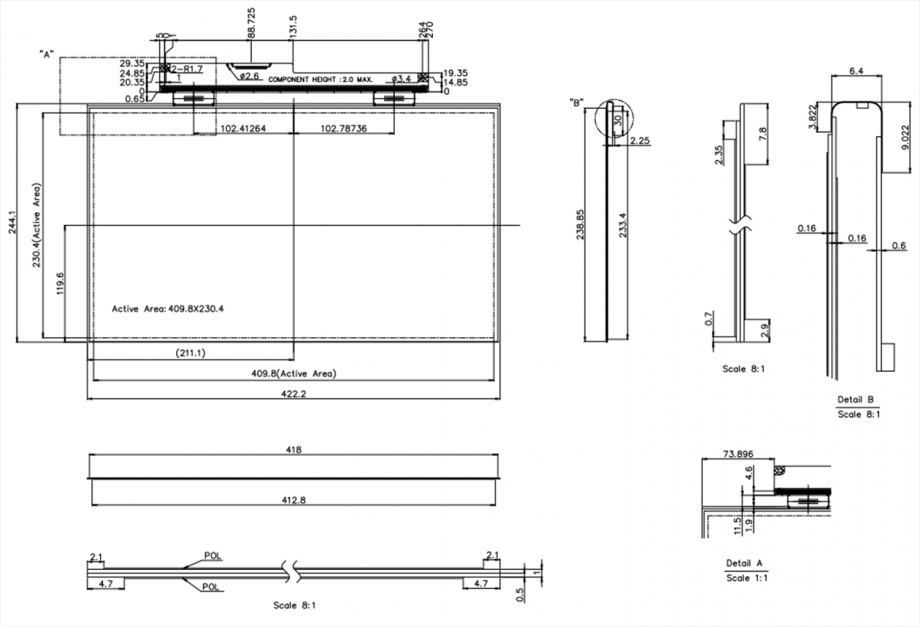

| Outline Dimension | 430.37mm*254.6mm*11.2mm |
| Active Area(mm) | 413.4mm*233.4mm |
| Color Depth | 16.7M |
| Interface | LVDS |
| Brightness | 930nits |
| Viewing Angle | ALL |
| Display Mode | Normally BLACK |
| PIN | 30 |
| Operating Temperature | -15~65 |
| Storage Temperature | -20~70 |
| LED life time | 30000 |
