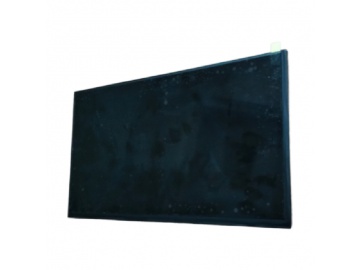

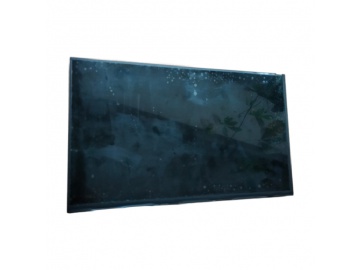

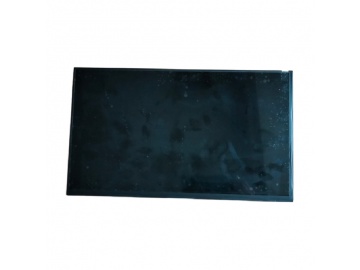

14.6 inch TFT 液晶显示屏
1920*1080 分辨率
亮度可按照客户要求定做
触摸屏可根据客户要求定做
液晶屏FPC 以及丁页可以根据客户要求定制
|
Size 尺寸 |
14.6 |
inches |
|
Resolution 分辨率 |
1920*1080 |
|
|
Active Area 显示区域 |
323.136*181.764 |
mm |
|
Outline dimension 外观尺寸 |
336.249*198.46*7.73 |
mm |
|
Color Depth 颜色 |
16.7 M colors |
|
|
Display Mode 显示模式 |
Normally black Transmissive |
|
|
Surface treatment 表面处理 |
TBD |
|
|
Interface 接口 |
60Pin LVDS |
|
|
View Angle 可视角度 |
85/85/85/85 |
|
|
Brightness 亮度 |
650 |
Nits |
|
Operating temperature 工作温度 |
-30 ... +85 |
°C |
|
Storage temperature 储存温度 |
-40 ... +90 |
°C |
|
Contrast ratio 对比度 |
1000 |
|
