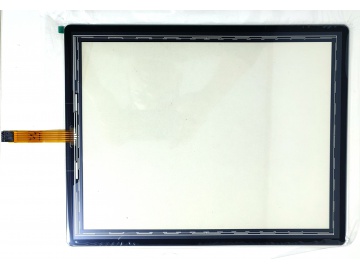

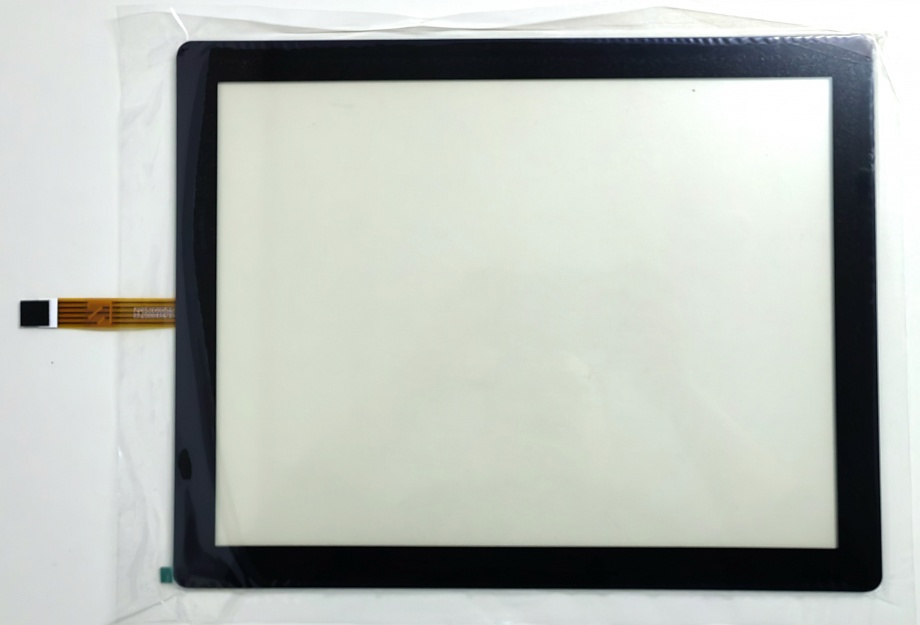

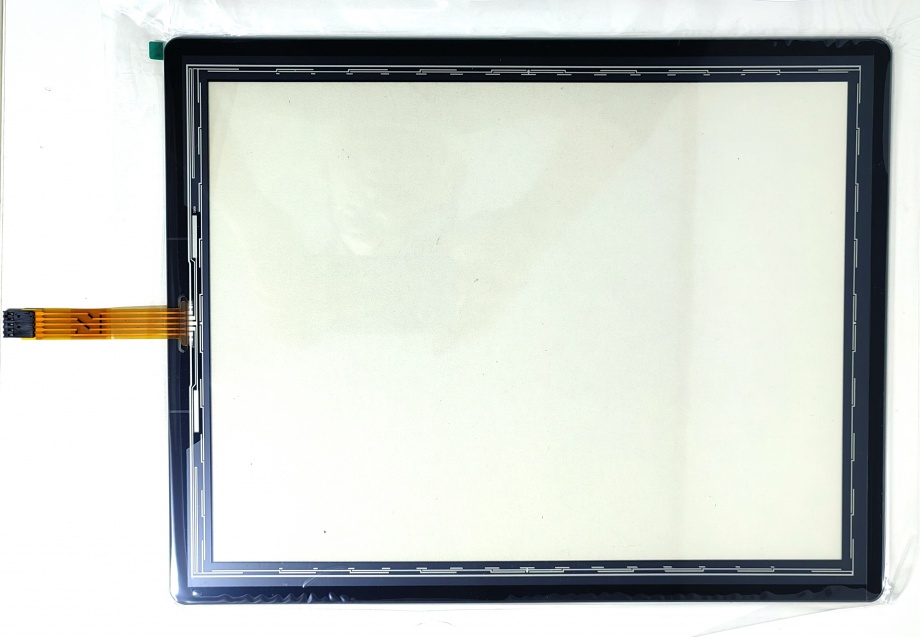

全平面式电阻触摸屏显示模组#兼具电容屏的外观&电阻屏的稳定性！
型号：LST15051-T
尺寸：15" 4线全平面电阻式触摸屏
接口：2.54间距 AMP-C插针接口
耐用性：250克力度可点击1000万次
工作温度：-20-+70 储存温度：-40-+80

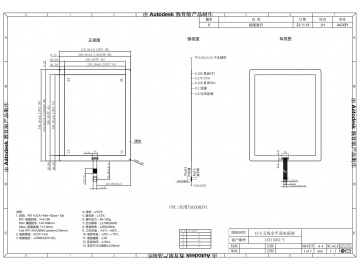

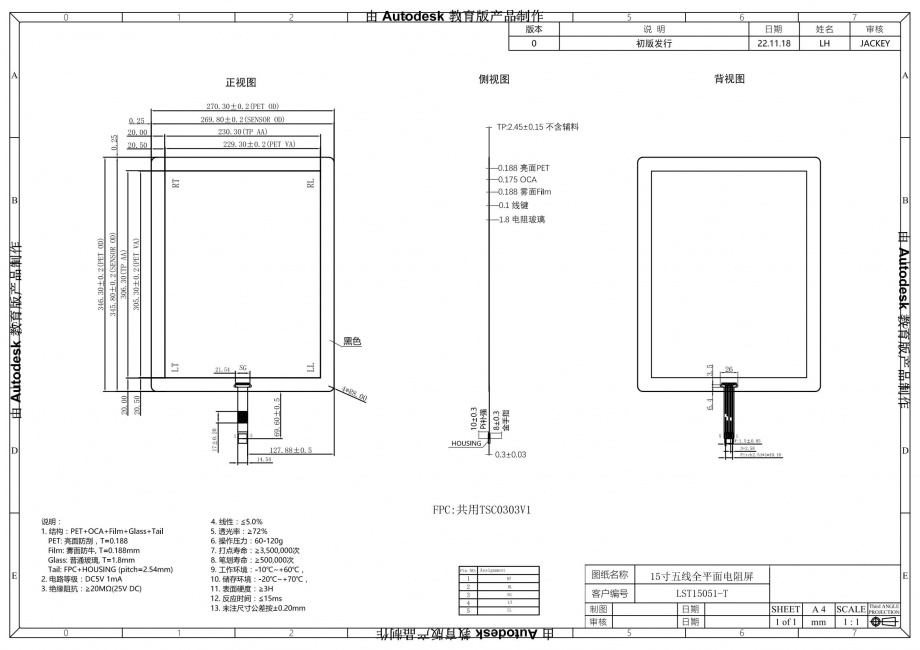

详细尺寸和规格书请联系我提供！
|
AMT9536 |
8.4寸4线电阻屏 |
AMT9541 |
10.4寸4线电阻屏 |
|
AMT9509 |
10.4寸4线电阻屏 |
AMT9537 |
10.4寸4线电阻屏 |
|
AMT9542 |
12.1寸4线电阻屏 |
AMT9543 |
15寸4线电阻屏 |
|
AMT9518 |
10.4寸8线电阻屏 |
AMT9534 |
12.1寸8线电阻屏 |
|
AMT9546 |
15寸8线电阻屏 |
AMT9535 |
15寸8线电阻屏 |
|
AMT9539 |
17寸8线电阻屏 |
AMT2525 |
7寸5线电阻屏 |
|
AMT2507 |
10.67寸5线电阻屏 |
AMT2514 |
12.1寸5线电阻屏 |
|
AMT2534 |
15寸5线电阻屏 |
AMT2513 |
15寸5线电阻屏 |
|
AMT2517 |
15寸5线电阻屏 |
AMT28190 |
15寸5线电阻屏 |
|
AMT2522 |
15.6寸5线电阻屏 |
AMT28161 |
12.1寸5线电阻屏 |
|
AMT2538 |
17寸5线电阻屏 |
AMT2512 |
17寸5线电阻屏 |
|
AMT2511 |
19寸5线电阻屏 |
AMT2528 |
17寸5线电阻屏 |
|
AMTP3012-C2D |
7寸电容屏 |
AMTP3032-C20 |
7寸电容屏 |
|
AMTP3021-C2A |
10.1寸电容屏 |
AMTP3033-C20 |
10.1寸电容屏 |
|
AMTP3024-C20 |
10.4寸电容屏 |
AMTP3012-A2B |
7寸电容屏 |
|
AMTP3007-A2A |
8.4寸电容屏 |
AMTP3021-A2A |
10.1寸电容屏 |
|
AMTP3008-A2A |
10.4寸电容屏 |
AMTP3026-A20 |
12.1寸电容屏 |
|
AMTP3030-A20 |
12.1寸电容屏 |
AMTP3029-A20 |
15寸电容屏 |
|
AMTP3012-C2D |
7寸电容屏 |
AMTP3012-C2D |
7寸电容屏 |
技术参数：
Mechanical Dimensions and Construction1.1 General: Analog Resistive touch screen is laminated by ITO film to ITO glass.
1.2 Mechanical Performance:
1.2.1 Surface hardness: 3H
1.2.2 ITO Glass Thickness: 1.1mm
1.2.3 Tail Type: FPC
1.2.4 Surface Finish Type: Anti-glare
2. Typical Optical Characteristics
2.1 Visible Light Transmission: 82 ± 3%
2.2 Haze: 9.5 ± 2.5%
3. Electrical Specifications
3.1 Operating Voltage: 5.5V or less
3.2 Contact current: 20mA (maximum)
3.3 Circuit close resistance: X : 400~1000Ω
Y : 200~650Ω
3.4 Circuit open resistance: > 10MΩ at 25VDC
3.5 Contact bounce:<10ms
3.6 Linear Test :<1.5 %
3.7 Capacitance:100nF(maximum)
3.8 Electrostatic Discharge Protection : (per EN 61000-4-2 )
The touch screen withstands of 15KV air discharge and 8KV contact discharge.
4. Linearity
4.1 Linear Test Specification
Direction X:<1.5 %
Direction Y:<1.5 %
搭配控制器型号：
PM6300#USB控制器4/5/8线，PM6300A8#USB控制器4/8线
PM6500#USB&RS-232控制器4/5/8线
PM6300A5#USB控制器5线
PM9026BH#RS-232控制器4/8线
PM9036#RS-232控制器4/5/8线
PM6202B-CZ4/PM6206B-CW5/PM6202-CW4/PM6202-CZ5
PM9036CH-5#RS-232控制器5线
PM9036CH-8#RS-232控制器4/8线
