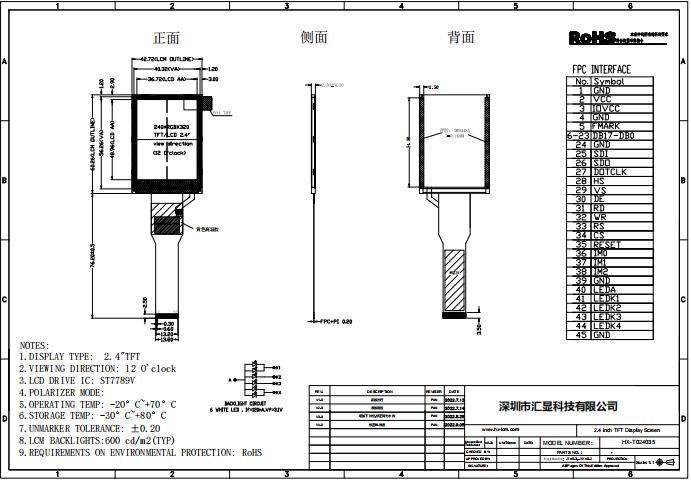

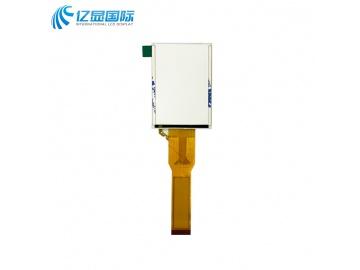

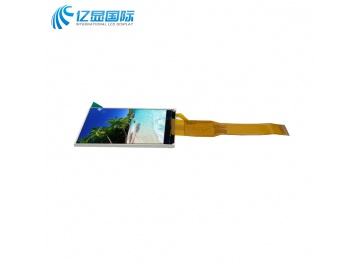

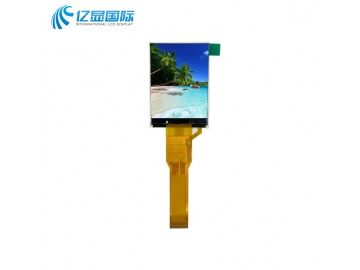

1. Technical parameters
|
ITEM |
STANDARD VALUES |
UNITS |
|
LCD type |
2.4’’TFT |
-- |
|
Dot arrangement |
240(RGB)×320 |
dots |
|
Color filter array |
RGB vertical stripe |
-- |
|
Display mode |
TN / Transmission / Normally White |
- |
|
Eyes Viewing Direction |
12 O’CLOCK |
-- |
|
Driver IC |
ST7789V |
-- |
|
Module size |
42.72(W)×60.26(H)×2.50(T)(Exclude FPC) |
mm |
|
Active area |
36.72(W)×48.96(H) |
mm |
|
Interface |
RGB |
-- |
|
Operating temperature |
-20 ~ +70 |
°C |
|
Storage temperature |
-30 ~ +80 |
°C |
|
Back Light |
White LED*6 |
-- |
2. LCD Optical Characteristics

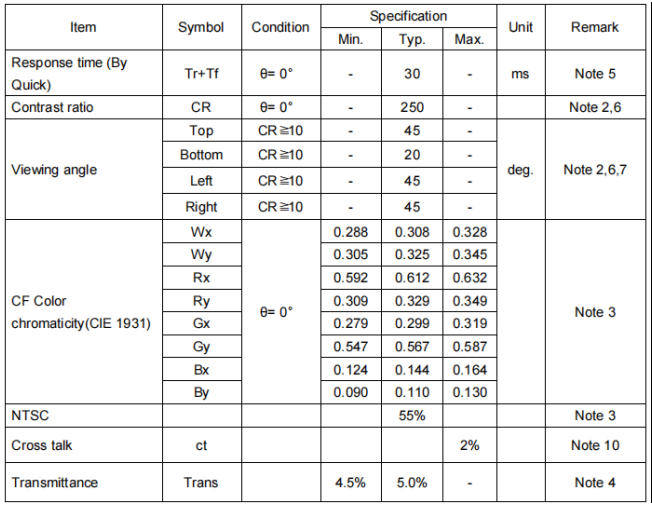

3. LED Backlight Characteristics
|
Item |
Symbol |
MIN |
TYP |
MAX |
UNIT |
Test Condition |
|
Supply Voltage |
Vf |
- |
3.1 |
- |
V |
If=120mA |
|
Supply Current |
If |
- |
120 |
- |
mA |
- |
|
Luminous Intensity for LCM |
- |
550 |
600 |
- |
cd/m2 |
If=120mA |
|
Uniformity for LCM |
- |
80 |
- |
- |
％ |
If=120mA |
|
Life Time |
- |
20000 |
- |
- |
Hr |
If=120mA |
|
Backlight Color |
White |
|||||
