The specification GT070TN94-R80-T42 is a 7 ”(800x480) TFT Liquid Crystal Display module composed a TFT LCD panel, P-Cap Touch Panel and LED Backlight system, , 50 pin TTL interface, normally white transmissive display mode.
|
No. |
Item |
Description |
Remark |
|
1 |
LCD size |
7.0 inch(Diagonal) |
|
|
2 |
Driver element |
a-Si TFT active matrix |
|
|
3 |
Resolution |
800 × 3(RGB) × 480 |
|
|
4 |
Display mode |
Normally White, Transmissive |
|
|
5 |
Dot pitch |
0.0642(W) × 0.1790(H) mm |
|
|
6 |
Active area |
154.08(W) × 85.92(H) mm |
|
|
7 |
Surface treatment |
Anti-Glare |
|
|
8 |
Color arrangement |
RGB-stripe |
|
|
9 |
Display Color |
16.7M |
|
|
10 |
LCD Module Interface |
Digital, Parallel 8-bit RGB |
|
|
11 |
Touch Driver IC controller |
GT911 |
|
|
12 |
Touch Input Mode |
Support Muti Finger |
|
|
13 |
TP Surface Treatment |
No surface treatment |
|
|
14 |
TP Surface Hardness |
＞6H |
|
|
15 |
Touch Fountion Interface |
I²C |
|
|
16 |

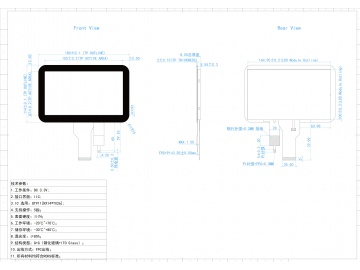

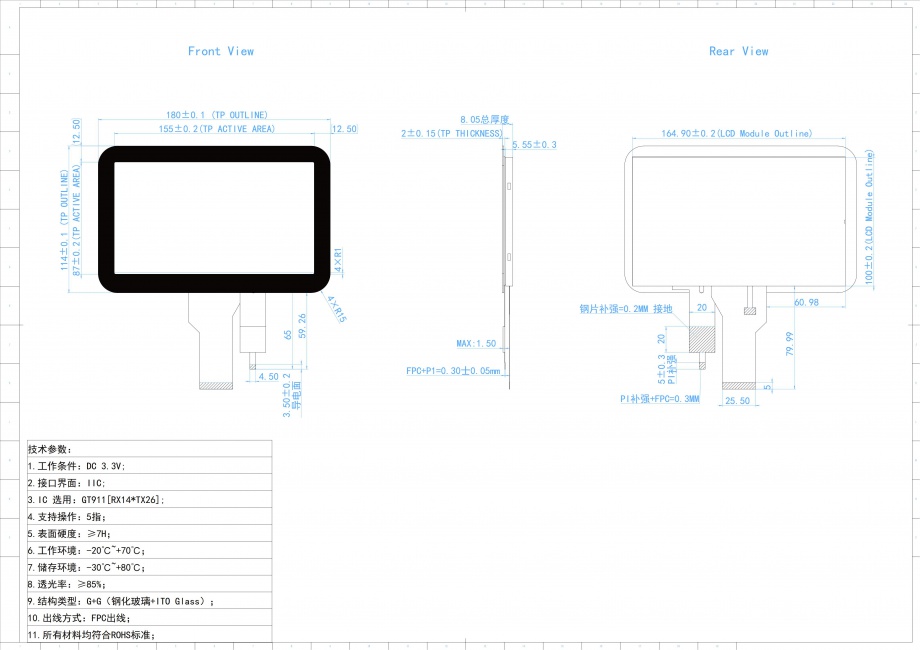

Physical Size (Max.) |
180(H) × 114V) × 8.05(Body) |
mm |
|
17 |
Power Consumption |
Logic: Light Bar: |
|
|
18 |
Temperature Range |
Operating：-20 to +70 Storage：-30 to +80 |
|
|
19 |
Touch Bonding Option |
Air Bonding |
|
|
20 |
Weight |
155g(Typ.) |
|
