The G156HCE-L01-T21 model is a 15.6” TFT Liquid Crystal Display module Composed of TFT LCD panel ， PCAP Touch unit， LED backlight unit and a 40-pin 2ch-LVDS interface. This module supports 1920 x 1080 FHD AAS mode and can display 16,194,277 colors
|
Item |
Specification |
Unit |
Note |
|
Screen Size |
15.6” real diagonal |
inch |
(1) |
|
Driver Element |
a-si TFT active matrix |
mm |
|
|
Pixel Number |
1920 x R.G.B. x 1080 |
mm |
|
|
Pixel Pitch |
0.17925 (H) x 0.17925 (V) |
|
|
|
Pixel Arrangement |
RGB vertical stripe |
pixel |
|
|
Display Colors |
16.2M |
mm |
|
|
Transmissive Mode |
Normally Black |
- |
|
|
Surface Treatment |
AG type, 3H hard coating, |
color |
|
|
Luminance, White |
450(Typ.) |
- |
|
|
Color Gamut |
72 % of NTSC(Typ.) |
- |
|
|
TP Driver IC |
ILI 2511 |
|
|
|
TP Structrue |
G+G |
|
|
|
TP Interface |
USB/ I²C |
|
|
|
TP Touch Input Mode |
Support Single/Muti Finger |
|
|
|
TP Surface Treatment |
Using AGC ,Chemical Strengthened |
|
|
|
TP Surface Hardness |
＞6H |
|
|
|

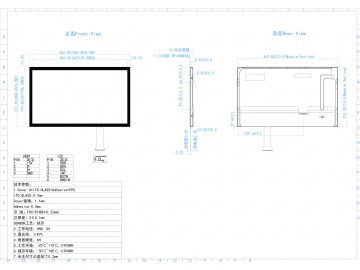

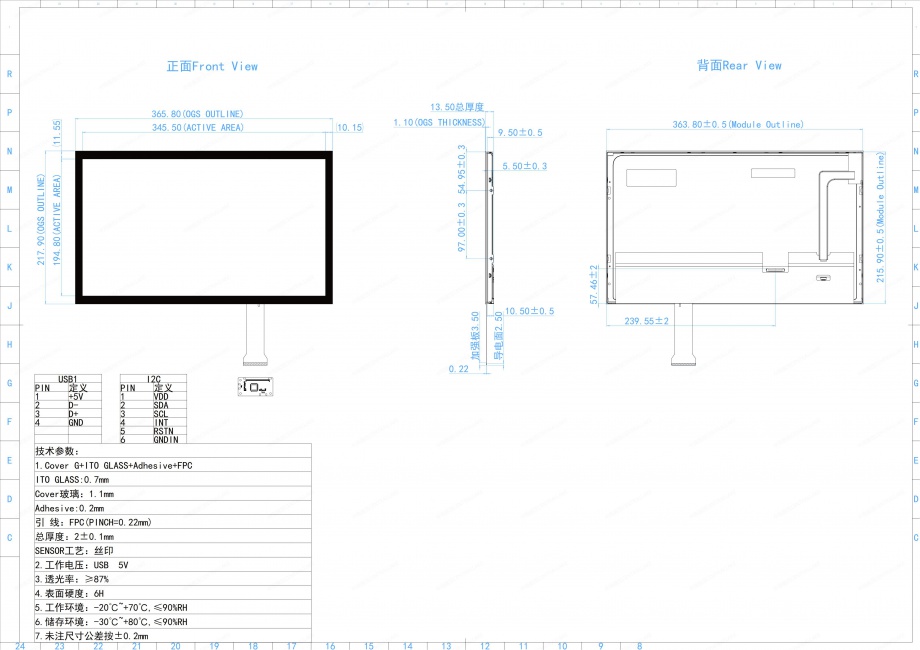

Physical Size (Max.) |
365.8(H)*217.9(V)*12.6(Typ) |
mm |
|
|
Electrical Interface |
LCD:LVDS Touch panel : I²C/USB |
|
|
|
Power Consumption |
(Total 16 W (Typ) @ cell 4 W (Typ), BL 12 W (Typ)) |
W |
typ |
