首页 > 产品展示 > 高亮度液晶屏 > G101EVN03.1WithADBoard

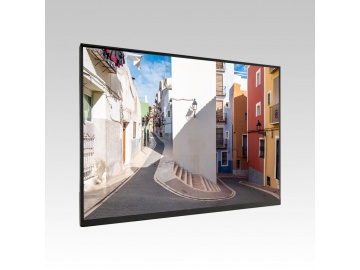

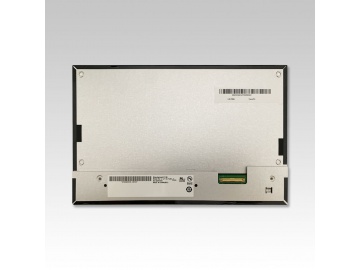

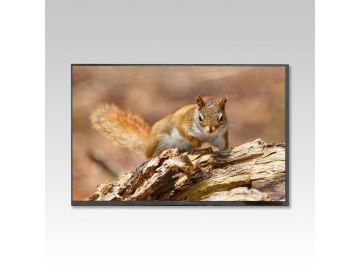

10.1", 1280 x 800, 1000亮度, LVDS接口, 高亮度液晶屏 与自动调光AD Board

产品品牌: TWScreen
产品型号:G101EVN03.1WithADBoard
起  订  量:2 pcs
样品提供: 付费样品
付款方式:
产品编号:58179
立即询价
加入询价蓝　 0条信息在您的询价篮
收藏产品

产品分类

液晶屏 [83]
PCAP电容触摸液晶屏 [57]

PCAP触摸玻璃 [21]

PCAP触摸液晶屏 [36]

RTP电阻触摸液晶屏 [12]

RTP触摸玻璃 [12]

RTP触摸液晶屏 [0]

Smart Touch Panel (触控显示方案) [6]
液晶屏+驱动板(全套套件) [21]
高亮度液晶屏 [17]
液晶屏驱动板 [9]
背光驱动板 [4]
G156HAN04.0 Spec. Download
G101EVN03.1 Spec.
Download


G101EVN03.1 Specification


G101EVN03.1

Brand AUO
Inch 10.1"
Model G101EVN03.1
Resolution (Pixels) 1280 x 800 (WXGA)
Brightness 1,000 cd/㎡
Viewing Angle 85/85/85/85
Interface LVDS
LED Life Time 50,000 Hrs
LED B/L Driver without
Operating(℃) -20~60
Storage(℃) -30~70


2D Drawing

G101EVN03.1 2D G101EVN03.1 2D Drawing


最佳选配 - Touch


Projective Capacitive (PCAP)

PCAP Touch

Inch 10.1"
Touch Type PCAP
Structure G/G
Touch IC EETI
Transparency ≧ 85%
Surface Hardness ≧ 6H
FPC Type COF
Interface USB / I2C
V/A Dimension (mm) 217.56 x 136.2
Outline Dimension (mm) 247.76 x 166.4
Allow 10 points touch



5 Wires Resistive (RTP)

RTP Touch

Inch 10.1"
Touch Type 5 Wires RTP
Structure F/G
Touch IC EETI
Transparency ≧ 80%
Surface Hardness ≧ 3H
FFC Type COB
Interface USB
A/A Dimension (mm) 217.56 x 136.2
Outline Dimension (mm) 229.46 x 149.1
with USB Controller


最佳选配 - AD Board & Cable


AD-L037D (Auto Dimming AD Board)

AD-L037D GIF


无论是室内或者户外天气影响所产生不同的环境光源, 皆能自动调整液晶屏亮度

AD-L037D为搭配Light Sensor光感应功能所生, 可以藉由与高亮屏的组合来使用在高光源的环境中,
同时若在户外环境下, 当光源因多云或者夜晚而变暗时, AD-L037D也会一同降低屏的背光亮度, 以达到节能与不刺眼的使用体验！

AD-L037D with Light Sensor Board
Item AD-L037D
Resolution up to 1920 x 1080 @60 Hz
Signal Input VGA, HDMI, DP, Audio Phone Jack
Signal Output Dual port 6/8 bits LVDS
Auto Dimming Light Sensor Function
DC-IN +12V and up 1A Adaptor
Dimension 120mm x 74mm
Operating Temperature -20~70 ℃

我们可提供完整配件, 包含高亮屏, AD Board 以及线材等套件组


AD-L037D Optional Accessories



G101EVN03.1 Feature


High Brightness Display Feature


10.1" G101EVN03.1 1,000nits 高亮度液晶屏

高亮屏比一般面板具备更高的亮度, 使其达到阳光下可读的特性, 适用于多种户外或者高光源环境,
如：电动车充电桩, KIOSK, 广告机, 缴费机, 运输设备, 工业设备等等...

高亮屏拥有广泛的操作温度, 可适应在较严苛的环境之中,
同时LED Life Time 大于五万小时, 更适合24/7的长时间使用.

我们标准品备有6.5" ~ 32"多尺寸可选, 以及专业的工程团队提供协助, 可依照您的产品需求, 提供最适合的产品!


Inch Brand Item Resolution

White
Luminance

LED Life
Time (Hrs)

Viewing Angle

Operating Temperature
6.5" AUO G065VN01 V221 640 x 480 800 70K 89/89/89/89 -30~80
7" Innolux G070ACE-LH1 800 x 480 1,000 50K 89/89/89/89 -30~80
8.4" Tianma P0840XGF1MA00 1024 x 768 1,000 100K 88/88/88/88 -30~80
10.1" AUO G101EVN03.1 1280 x 800 1,000 50K 85/85/85/85 -20~60
10.4"
 		Tianma P1040XGF1MA00 1024 x 768 1,300 100K 85/85/85/85 -30~80
Innolux G104XCE-LH1 1024 x 768 1,000 50K 88/88/88/88 -30~85
12.1" Innolux G121XCE-LM1 1024 x 768 1,000 50K 89/89/89/89 -30~75
AUO G121EAN01.2 1280 x 800 1,000 50K 89/89/89/89 -30~85
AUO G121EAN01.3 1280 x 800 1,500 50K 89/89/89/89 -30~85
15" AUO G150XAN02.1 1024 x 768 800 50K 89/89/89/89 -20~75
AUO G150XTN06.A 01 1024 x 768 1,800 50K 80/80/70/80 -30~70
15.6" AUO G156HAN04.0 1920 x 1080 1,000 50K 89/89/89/89 -30~85
17" AUO G170ETN02.1 1280 x 1024 800 50K 80/80/70/70 -30~85
19" AUO G190ETN01.601 1280 x 1024 1,600 50K 85/85/80/80 -30~70
21.5" AUO G215HVN01.3 1920 x 1080 1,000 50K 89/89/89/89 -10~80
AUO P215HAN02.001 1920 x 1080 1,500 70K 89/89/89/89 -20~50
23.8" Innolux G238HCJ-LH1 1920 x 1080 1,000 50K 88/88/88/88 -30~80


G101EVN03.1 Application


High Brightness Display Application
