1. General Description
EV101WXM-N10-T40 is a color active matrix TFT Liquid Crystal Display composed of a TFT LCD panel, P-Cap Touch Panel and LED Backlight system, The screen format is intended to support the 16:10 WXGA , 1280(H) x800(V) screen and 16.2M colors with LED backlight Driving circuit. All input signals are LVDS interface compatible.
|
Items |
Specification |
Unit |
Remarks |
|
Screen Diagnonal |
10.1 |
inch |
|
|
Active Area |
216.96(H)*135.6(V) |
mm |
|
|
Number Of Pixels |
1280(H)×800(V) |
pixels |
|
|
Pixel Arrangement |
Pixels RGB stripe arrangement |
|
|
|
Display Mode |
ADS |
|
|
|
Display Colors |
16.2M |
colors |
6+FRC |
|
Nominal Input Voltage |
3.3(Typical) |
Volt |
|
|
Touch Driver IC |
GT9271 |
|
|
|
Touch Input Mode |
Support single/Muti Finger |
|
|
|
TP Surface Treatment |
No surface treatment |
|
|
|
TP Surface Hardness |
＞6H |
|
|
|
TP Bonding Method |
Air Bonding OCA Bonding (Optional) |
|
|
|

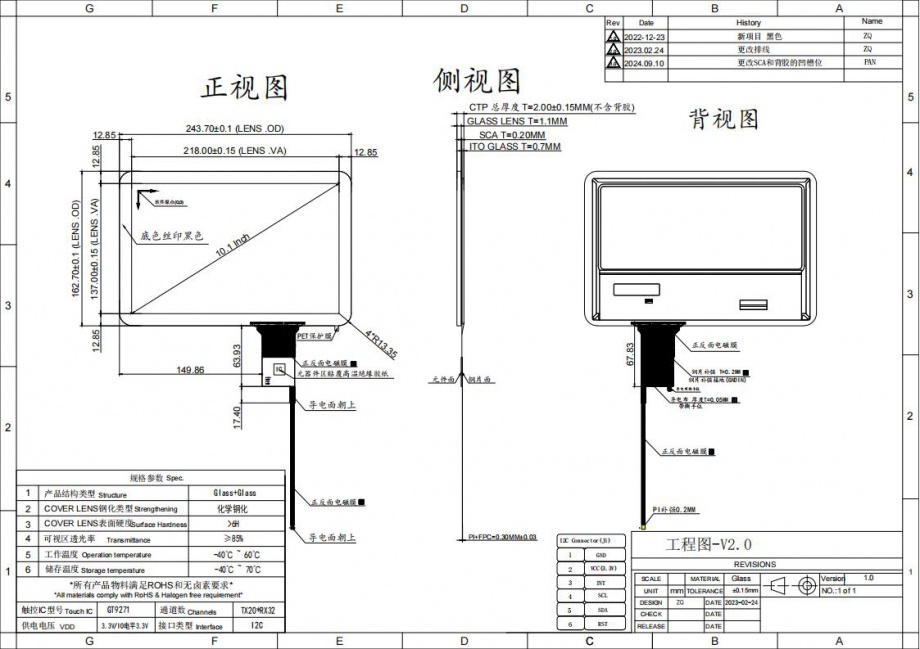

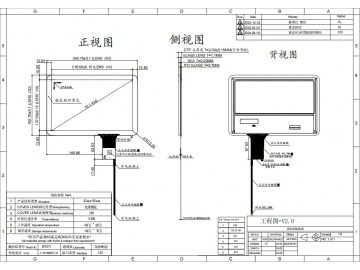

Physical Size (Max.) |
243.7(H) x 162.7(V)x 9.2（D） |
mm |
|
|
Electrical/Signal Interface |
LCD:LVDS Touch panel : I²C |
|
|
|
Temperature Range |
Operating：-20 to +70 Storage：-30 to +80 |
℃ |
|
|
Power Consumption |
Logic: Light Bar: |
Watt |
|
|
RoHS Compliance |
RoHS Compliance |
|
|
|
Touch Operating System |
Android ,Windows |
|
|
