1. General Description
EV101WUM-N80-T09 is a color active matrix TFT Liquid Crystal Display composed of a TFT LCD panel, P-Cap Touch Panel and LED Backlight system, The screen format is intended to support the 16:10 WUXGA , 1920(H) x1200(V) screen and 16.7M colors with LED backlight Driving circuit. All input signals are LVDS interface compatible.
|
Items |
Specification |
Unit |
Remarks |
|
Screen Diagnonal |
10.1 |
inch |
|
|
Active Area |
216.8064(H)x135.504(V) |
mm |
|
|
Number Of Pixels |
1920(H)×1200(V) |
pixels |
|
|
Pixel Pitch |
0.11292(H)x0.11292(V) |
mm |
|
|
Pixel Arrangement |
RGB Vertical stripe |
|
|
|
Display Mode |
Normally Black |
|
|
|
Display Colors |
16.7M |
colors |
6+FRC |
|
Touch Driver IC |
ILI2511 |
|
|
|
Touch Input Mode |
Support single/Muti Finger |
|
|
|
TP Surface Treatment |
No surface treatment |
|
|
|
TP Surface Hardness |
＞6H |
|
|
|
TP Bonding Method |
Air Bonding OCA Bonding (Optional) |
|
|
|

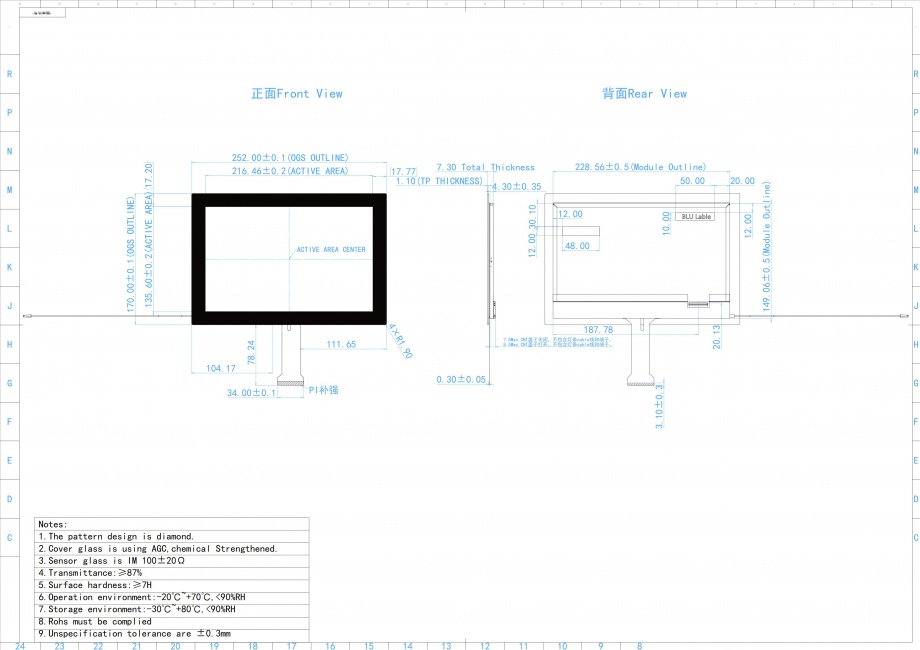

Physical Size (Max.) |
252.0(H) x166.2 (V)x7.3 |
mm |
|
|
Electrical Interface |
LCD:LVDS Touch panel : I²C/USB |
|
|
|
Temperature Range |
Operating：-20 to +70 Storage：-30 to +80 |
℃ |
|
|
RoHS Compliance |
RoHS Compliance |
|
|
|
Touch Operating System |
Android ,Windows |
|
|
