型号：AMT9507-00C

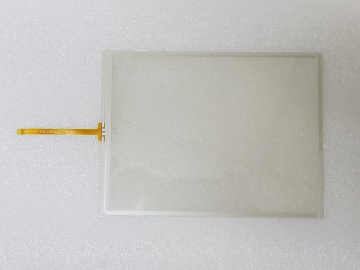

尺寸：8.4" 4线电阻式

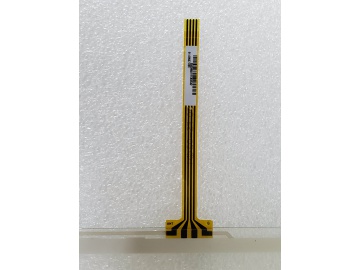

接口：1.0间距 ZIF金手指
耐用性：250克力度可点击1000万次
工作温度：-20-+70 储存温度：-40-+80

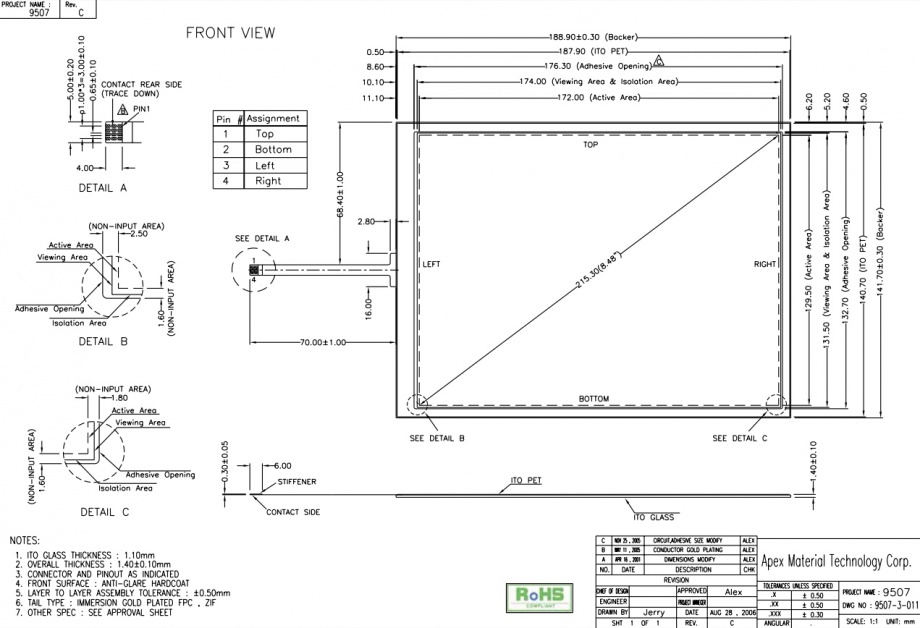

详细尺寸和规格书请联系我提供！
技术参数：
1.Mechanical Dimensions and Construction1.1 General: Analog Resistive touch screen is laminated by ITO film to ITO glass.
1.2 Mechanical Performance:
1.2.1 Surface hardness: 3H
1.2.2 ITO Glass Thickness: 1.1mm
1.2.3 Tail Type: FPC
1.2.4 Surface Finish Type: Anti-glare
2. Typical Optical Characteristics
2.1 Visible Light Transmission: 82 ± 3%
2.2 Haze: 9.5 ± 2.5%
3. Electrical Specifications
3.1 Operating Voltage: 5.5V or less
3.2 Contact current: 20mA (maximum)
3.3 Circuit close resistance: X : 400~1000Ω
Y : 200~650Ω
3.4 Circuit open resistance: > 10MΩ at 25VDC
3.5 Contact bounce:<10ms
3.6 Linear Test :<1.5 %
3.7 Capacitance:100nF(maximum)
3.8 Electrostatic Discharge Protection : (per EN 61000-4-2 )
The touch screen withstands of 15KV air discharge and 8KV contact discharge.
4. Linearity
4.1 Linear Test Specification
Direction X:<1.5 %
Direction Y:<1.5 %
详细尺寸和规格书请联系我提供！
|
