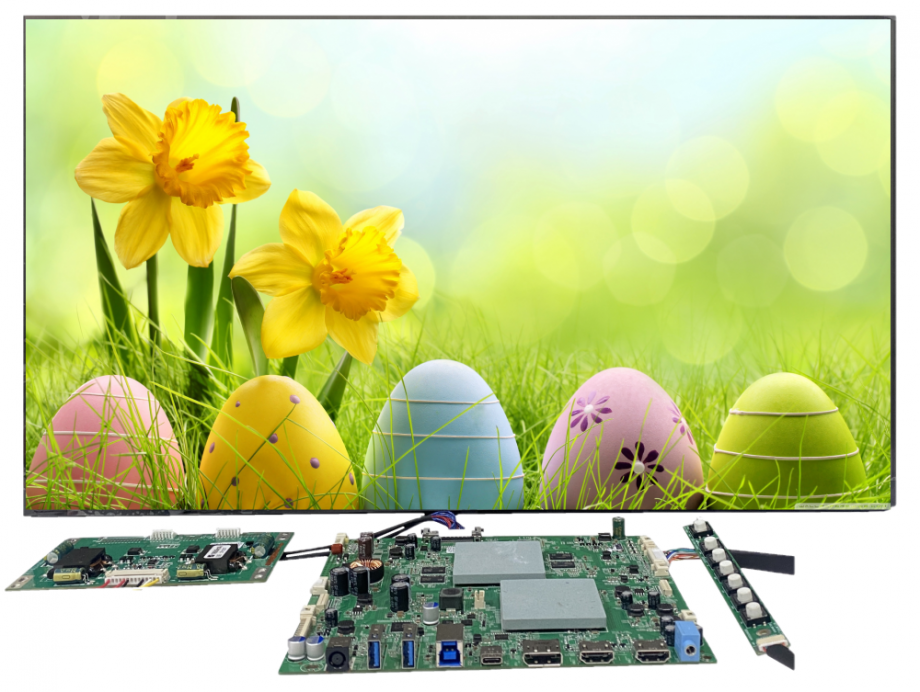

Product Outline:
ADB-270UHD01AM1 is a multi-function LCD display driver board, which can support the highest resolution 3840*2160 144H
*Support 8 LANE EDP (HBR2) OR 16 LANE EDP screen interface signal output.
*Supports multiple selectable OSD languages.
*Support motherboard software online update
*Support DP1.4A, HDMI2.1, HDCP support 2.2 version.
*Supports USB 3.0 function, with 2 external USB3.0A ports, which can be used for external USB device expansion.
*Maximum support 3W*2(@8R) power amplifier output
*Support TYPE C device signal input
*Supports charging TYPE C devices, the maximum charging power supports PD90W output
*Support MINI LED backlight output
*Support built-in MPRT backlight output
*Support external MPRT backlight output
*Support KVM switch
*Support 8 LANE EDP (HBR2) OR 16 LANE EDP screen interface signal output.
*Supports multiple selectable OSD languages.
*Support motherboard software online update
*Support DP1.4A, HDMI2.1, HDCP support 2.2 version.
*Supports USB 3.0 function, with 2 external USB3.0A ports, which can be used for external USB device expansion.
*Maximum support 3W*2(@8R) power amplifier output
*Support TYPE C device signal input
*Supports charging TYPE C devices, the maximum charging power supports PD90W output
*Support MINI LED backlight output
*Support built-in MPRT backlight output
*Support external MPRT backlight output
*Support KVM switch
Product Description:
